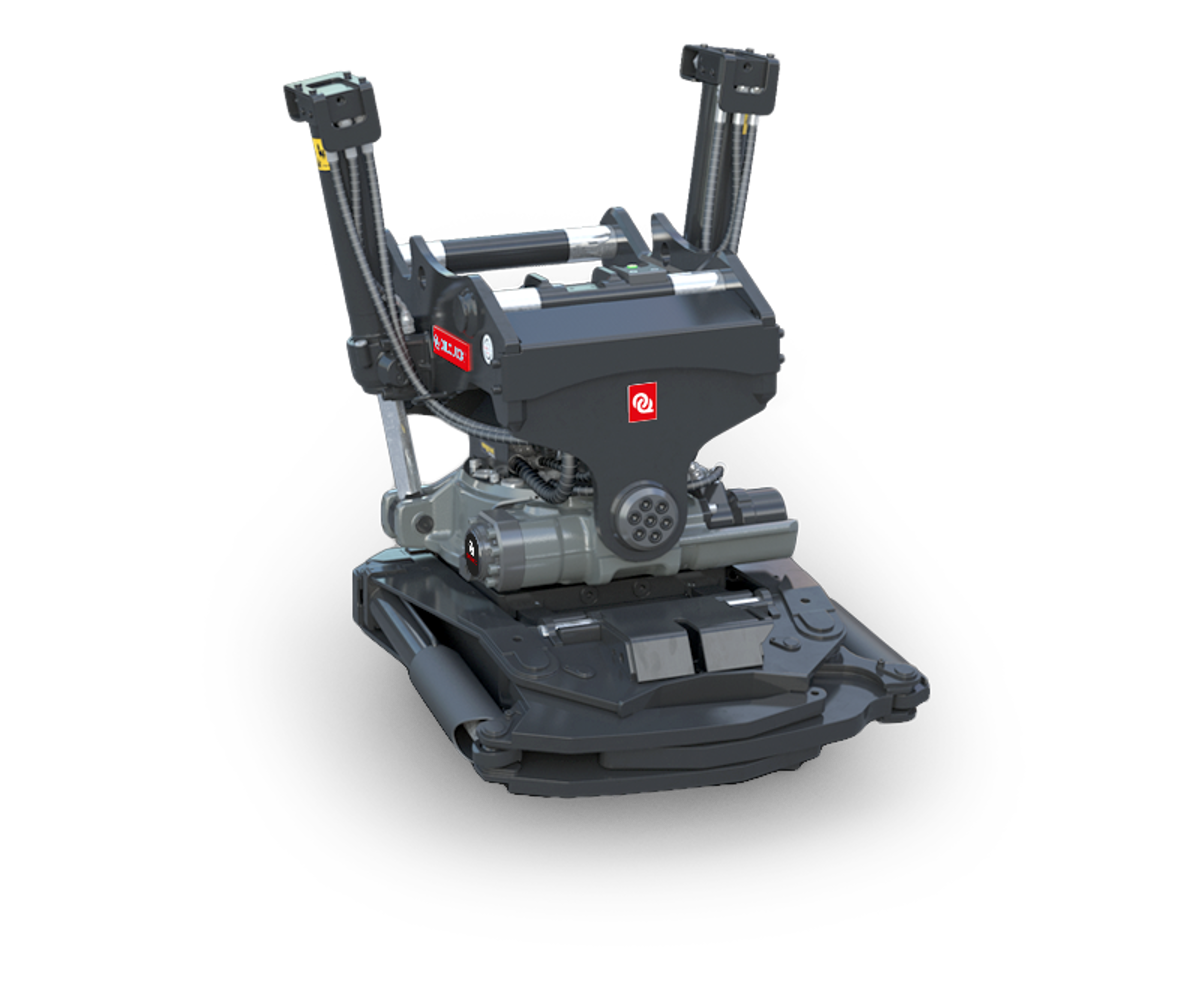

OQTR-E26
For medium-sized excavators and backhoe loaders in weight class 19-26 t.
Why OQTR-E?
Using the OilQuick tiltrotator equipped with the sandwich solution, the driver can tilt, rotate or change the tiltrotator for a bucket or other attachment and also change hydraulic tools under the tiltrotator without having to leave the cab. This takes the tiltrotator to a new level. If you have an OilQuick system mounted on top of the tiltrotator, you can remove it quickly to attach a standard bucket, ripper or hydraulic hammer, thus making maximum use of your excavator's capacity and breakout force. This also makes sure that the right tool is used for the right job!
OQTR-E26
Imperial
Metric
| Min/max machine weight | 19 000 - 26 000 kg |
| Weight | From 840 kg |
| Max. breaking torque | 270 kNm |
| Max. bucket width | 2000 mm |
| Max. hydraulic pressure | 22 MPa |
| Rec. hydraulic flow DC2 | 120 L/min |
| Rec. hydraulic flow tilt/rotation OQCS-4 | 70/70 L/min |
| Max. return line pressure | 2,5 MPa |
| Max. hydraulic flow extra/high flow | 100 L/min |
| Swivel channel extra function | 4 |
| Swivel channel locking function | 2 |
| Rotation | Unlimited |
| Tilt angle | 2x45° |
| Tilting speed at hydraulic flow | 5/43 s/L/min |
| Rotation speed for one rotation at hydraulic flow | 7/70 s/L/min |
| Standard dimension extra outlet | 1” |
| No. of lubrication points | 5, standard |
| No. of lubrication points through OQ-function | 4, option |
| Rotation sensor and ePS | Yes, standard |
| Tilt cylinder, double acting with load holding valve | Yes, standard |
| Control system | |
| DC2 | ✓ |
| DC2 wheel control | Option |
| DC2 track control | Option |
| OQCS-4 | ✓ |
| Min/max machine weight | 41 890 - 57 320 Lbs |
| Weight | From 1850 Lbs |
| Max. breaking torque | 199 140 Lb-ft |
| Max. bucket width | 78,7" |
| Max. hydraulic pressure | 3190 Psi |
| Rec. hydraulic flow DC2 | 32 gal/min |
| Rec. hydraulic flow tilt/rotation OQCS-4 | 15/20 gal/min |
| Max. return line pressure | 360 Psi |
| Max. hydraulic flow extra/high flow | 26 gal/min |
| Swivel channel extra function | 4 |
| Swivel channel locking function | 2 |
| Rotation | Unlimited |
| Tilt angle | 2x45° |
| Tilting speed at hydraulic flow | 5/11 s/gal/min |
| Rotation speed for one rotation at hydraulic flow | 7/18 s/gal/min |
| Standard dimension extra outlet | 1” |
| No. of lubrication points | 5, standard |
| No. of lubrication points through OQ-function | 4, option |
| Rotation sensor and ePS | Yes, standard |
| Tilt cylinder, double acting with load holding valve | Yes, standard |
| Control system | |
| DC2 | ✓ |
| DC2 wheel control | Option |
| DC2 track control | Option |
| OQCS-4 | ✓ |
OQTR-E26
Imperial
Metric
| With Quick coupler | OQ65 | OQ70 | OQ70/55 |
| Weight (from) | - | 840 kg | 850 kg |
| Total length (A) | 905 mm | 986 mm | 1200 mm |
| Height (B) | 660 mm | 698 mm | 670 mm |
| Width (C) | 900 mm | 894 mm | 895 mm |
| Total height (D) | 1215 mm | 1237 mm | 1240 mm |
| Coupler width (E) | 441 mm | 450 mm | 551 mm |
| C-C Axle distance (F) | - | 600 mm | - |
| Inner dimension mm (G) | - | 451 mm | - |
| With Quick coupler | OQ65 | OQ70 | OQ70/55 |
| Weight (from) | - | 1850 lbs | 1870 Lbs |
| Total length (A) | 35,6" | 38,8" | 47,2" |
| Height (B) | 26" | 27,5" | 26,4" |
| Width (C) | 35,4" | 35,2" | 35,2" |
| Total height (D) | 47,8" | 48,7" | 48,8" |
| Coupler width (E) | 17,4" | 17,7" | 21,7" |
| C-C Axle distance (F) | - | 23,6" | - |
| Inner dimension mm (G) | - | 17,8" | - |
