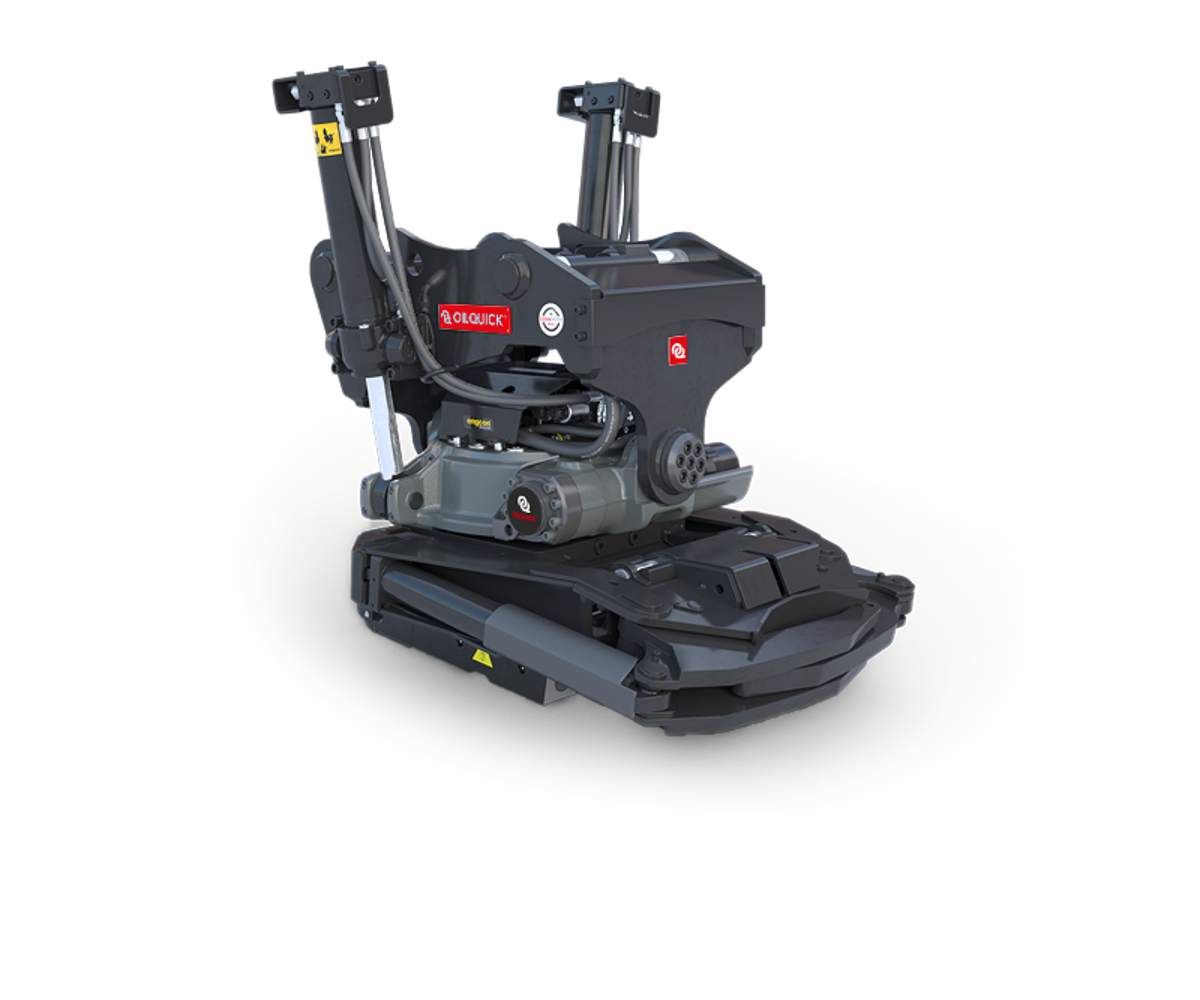

OQTR-E14
For minor excavators and backhoe loaders in weight class 9-14 t.
Why OQTR-E?
Using the OilQuick tiltrotator equipped with the sandwich solution, the driver can tilt, rotate or change the tiltrotator for a bucket or other attachment and also change hydraulic tools under the tiltrotator without having to leave the cab. This takes the tiltrotator to a new level. If you have an OilQuick system mounted on top of the tiltrotator, you can remove it quickly to attach a standard bucket, ripper or hydraulic hammer, thus making maximum use of your excavator's capacity and breakout force. This also makes sure that the right tool is used for the right job!
OQTR-E14
Imperial
Metric
| Min/max machine weight | 9 000 - 14 000 kg |
| Weight | From 470 - 520 kg |
| Max. breaking torque | 126 kNm |
| Max. bucket width | 1600 mm |
| Max. hydraulic pressure | 22 MPa |
| Rec. hydraulic flow DC2 | 80 L/min |
| Rec. hydraulic flow tilt/rotation OQCS-4 | 35/50 L/min |
| Max. return line pressure | 2,5 MPa |
| Max. hydraulic flow extra/high flow | 70/100* L/min |
| Swivel channel extra function | 4 |
| Swivel channel locking function | 2 |
| Rotation | Unlimited |
| Tilt angle | 2x45° |
| Tilting speed at hydraulic flow | 3/40 s/L/min |
| Rotation speed for one rotation at hydraulic flow | 7/50 s/L/min |
| Standard dimension extra outlet | 1/2” , 3/4” |
| No. of lubrication points | 5, standard |
| No. of lubrication points through OQ-function | 4, option |
| Rotation sensor and ePS | Yes, standard |
| Tilt cylinder, double acting with load holding valve | Yes, standard |
| Control system | |
| DC2 | ✓ |
| DC2 wheel control | Option |
| DC2 track control | Option |
| OQCS-4 | ✓ |
| *70 L/min via 1/2” på OQ45-4, OQ45-5, S45 |
| *100 L/min via 3/4” på OQ60-4, OQ60-5, S60 |
| Min/max machine weight | 19 840 - 30 860 Lbs |
| Weight | 1040 - 1150 Lbs |
| Max. breaking torque | 92930 Lb-ft |
| Max. bucket width | 63" |
| Max. hydraulic pressure | 3190 Psi |
| Rec. hydraulic flow DC2 | 21 gal/min |
| Rec. hydraulic flow tilt/rotation OQCS-4 | 8 - 13 gal/min |
| Max. return line pressure | 360 Psi |
| Max. hydraulic flow extra/high flow | 18/26 gal/min |
| Swivel channel extra function | 4 |
| Swivel channel locking function | 2 |
| Rotation | Unlimited |
| Tilt angle | 2x45° |
| Tilting speed at hydraulic flow | 3/11 s/gl/min |
| Rotation speed for one rotation at hydraulic flow | 7/13 s/gal/min |
| Standard dimension extra outlet | 1/2” , 3/4” |
| No. of lubrication points | 5, standard |
| No. of lubrication points through OQ-function | 4, option |
| Rotation sensor and ePS | Yes, standard |
| Tilt cylinder, double acting with load holding valve | Yes, standard |
| Control system | |
| DC2 | ✓ |
| DC2 wheel control | Option |
| DC2 track control | Option |
| OQCS-4 | ✓ |
| *18 gal/min via 1/2” on OQ45-4, OQ45-5, S45 |
| *26 gal/min via 3/4” on OQ60-4, OQ60-5, S60 |
OQTR-E14
Imperial
Metric
| With Quick coupler | OQ45-4 | OQ45-5 | OQ60-4 | OQ60-5 |
| Weight (from) | 470 kg | 470 kg | 520 kg | 520 kg |
| Total length (A) | 737 mm | 737 mm | 822 mm | 822 mm |
| Height (B) | 585 mm | 585 mm | 618 mm | 618 mm |
| Width (C) | 657 mm | 657 mm | 715 mm | 715 mm |
| Total height (D) | 1075 mm | 1075 mm | 1103 mm | 1103 mm |
| Coupler width (E) | 290 mm | 290 mm | 340 mm | 340 mm |
| C-C Axle distance (F) | 430 mm | 430 mm | 480 mm | 480 mm |
| Inner dimension (G) | 291 mm | 291 mm | 341 mm | 341 mm |
| With Quick coupler | OQ45-4 | OQ45-5 | OQ60-4 | OQ60-5 |
| Weight (from) | 1040 Lbs | 1040 Lbs | 1150 Lbs | 1150 Lbs |
| Total length (A) | 29" | 29" | 32,4" | 32,4" |
| Height (B) | 23" | 23" | 24,3" | 24,3" |
| Width (C) | 25,9" | 25,9" | 28,1" | 28,1" |
| Total height (D) | 42,3" | 42,3" | 43,4" | 43,4" |
| Coupler width (E) | 11,4" | 11,4" | 13,4" | 13,4" |
| C-C Axle distance (F) | 16,9" | 16,9" | 18,9" | 18,9" |
| Inner dimension (G) | 11,5" | 11,5" | 13,4" | 13,4" |
