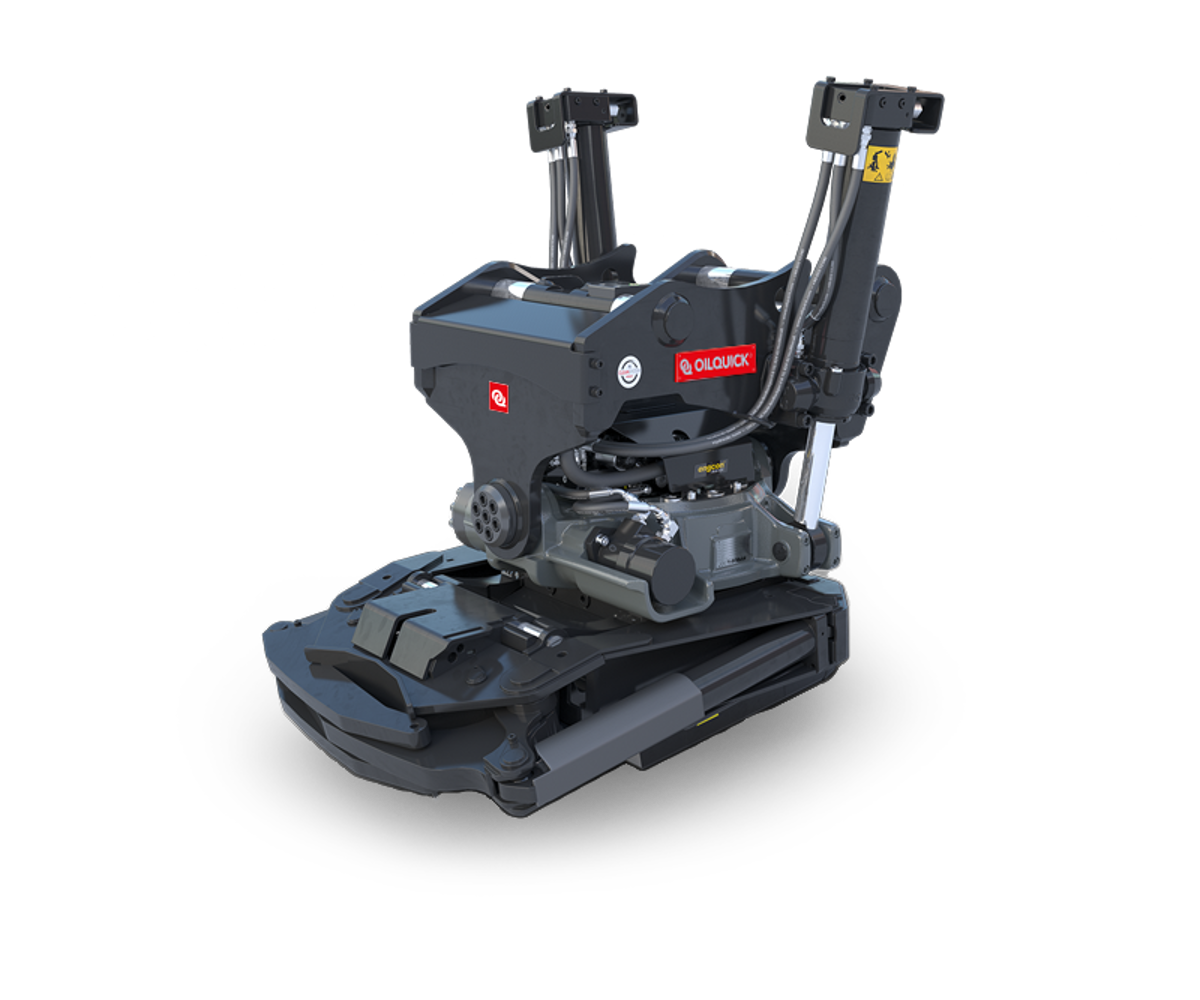

OQTR-E09
For minor excavators in weight class 6-9 t.
Why OQTR-E?
Using the OilQuick tiltrotator equipped with the sandwich solution, the driver can tilt, rotate or change the tiltrotator for a bucket or other attachment and also change hydraulic tools under the tiltrotator without having to leave the cab. This takes the tiltrotator to a new level. If you have an OilQuick system mounted on top of the tiltrotator, you can remove it quickly to attach a standard bucket, ripper or hydraulic hammer, thus making maximum use of your excavator's capacity and breakout force. This also makes sure that the right tool is used for the right job!
OQTR-E09
Imperial
Metric
| Min/max machine weight | 6 000 - 9 000 kg |
| Weight | From 460 kg |
| Max. breaking torque | 74 kNm |
| Max. bucket width | 1300 mm |
| Max. hydraulic pressure | 22 MPa |
| Rec. hydraulic flow DC2 | 60 L/min |
| Rec. hydraulic flow tilt/rotation OQCS-4 | 35/40 L/min |
| Max. return line pressure | 2,5 MPa |
| Max. hydraulic flow extra/high flow | – |
| Swivel channel extra function | 4 |
| Swivel channel locking function | 2 |
| Rotation | Unlimited |
| Tilt angle | 2x45° |
| Tilting speed at hydraulic flow | 3/40 s/L/min |
| Rotation speed for one rotation at hydraulic flow | 7/50 s/L/min |
| Standard dimension extra outlet | 3/8”, 1/2” |
| No. of lubrication points | 3, standard |
| No. of lubrication points through OQ-function | 2, option |
| Rotation sensor and ePS | Yes, standard |
| Tilt cylinder, double acting with load holding valve | Yes, standard |
| Control system | |
| DC2 | ✓ |
| DC2 wheel control | Option |
| DC2 track control | Option |
| OQCS-4 | ✓ |
| Min/max machine weight | 13 230 - 19 840 Lbs |
| Weight | 1010 Lbs |
| Max. breaking torque | 54 580 Lb-ft |
| Max. bucket width | 51,2" |
| Max. hydraulic pressure | 3190 Psi |
| Rec. hydraulic flow DC2 | 16 gal/min |
| Rec. hydraulic flow tilt/rotation OQCS-4 | 8-11 gal/min |
| Max. return line pressure | 360 Psi |
| Max. hydraulic flow extra/high flow | – |
| Swivel channel extra function | 4 |
| Swivel channel locking function | 2 |
| Rotation | Unlimited |
| Tilt angle | 2x45° |
| Tilting speed at hydraulic flow | 3/11 s/gal/min |
| Rotation speed for one rotation at hydraulic flow | 7/13 s/gal/min |
| Standard dimension extra outlet | 3/8”, 1/2” |
| No. of lubrication points | 3, standard |
| No. of lubrication points through OQ-function | 2, option |
| Rotation sensor and ePS | Yes, standard |
| Tilt cylinder, double acting with load holding valve | Yes, standard |
| Control system | |
| DC2 | ✓ |
| DC2 wheel control | Option |
| DC2 track control | Option |
| OQCS-4 | ✓ |
OQTR-E09
Imperial
Metric
| With Quick coupler | OQ45-4 | OQ45-5 |
| Weight (from) | 470 kg | 470 kg |
| Total length (A) | 700 mm | 700 mm |
| Height (B) | 560 mm | 560 mm |
| Width (C) | 690 mm | 690 mm |
| Total height (D) | 1005 mm | 1005 mm |
| Coupler width (E) | 290 mm | 290 mm |
| C-C Axle distance (F) | 430 mm | 430 mm |
| Inner dimension (G) | 291 mm | 291 mm |
| With Quick coupler | OQ45-4 | OQ45-5 |
| Weight (from) | 1040 Lbs | 1040 Lbs |
| Total length (A) | 27,6" | 27,6" |
| Height (B) | 22" | 22" |
| Width (C) | 27,2" | 27,2" |
| Total height (D) | 39,6" | 39,6" |
| Coupler width (E) | 11,4" | 11,4" |
| C-C Axle distance (F) | 16,9" | 16,9" |
| Inner dimension (G) | 11,5" | 11,5" |
