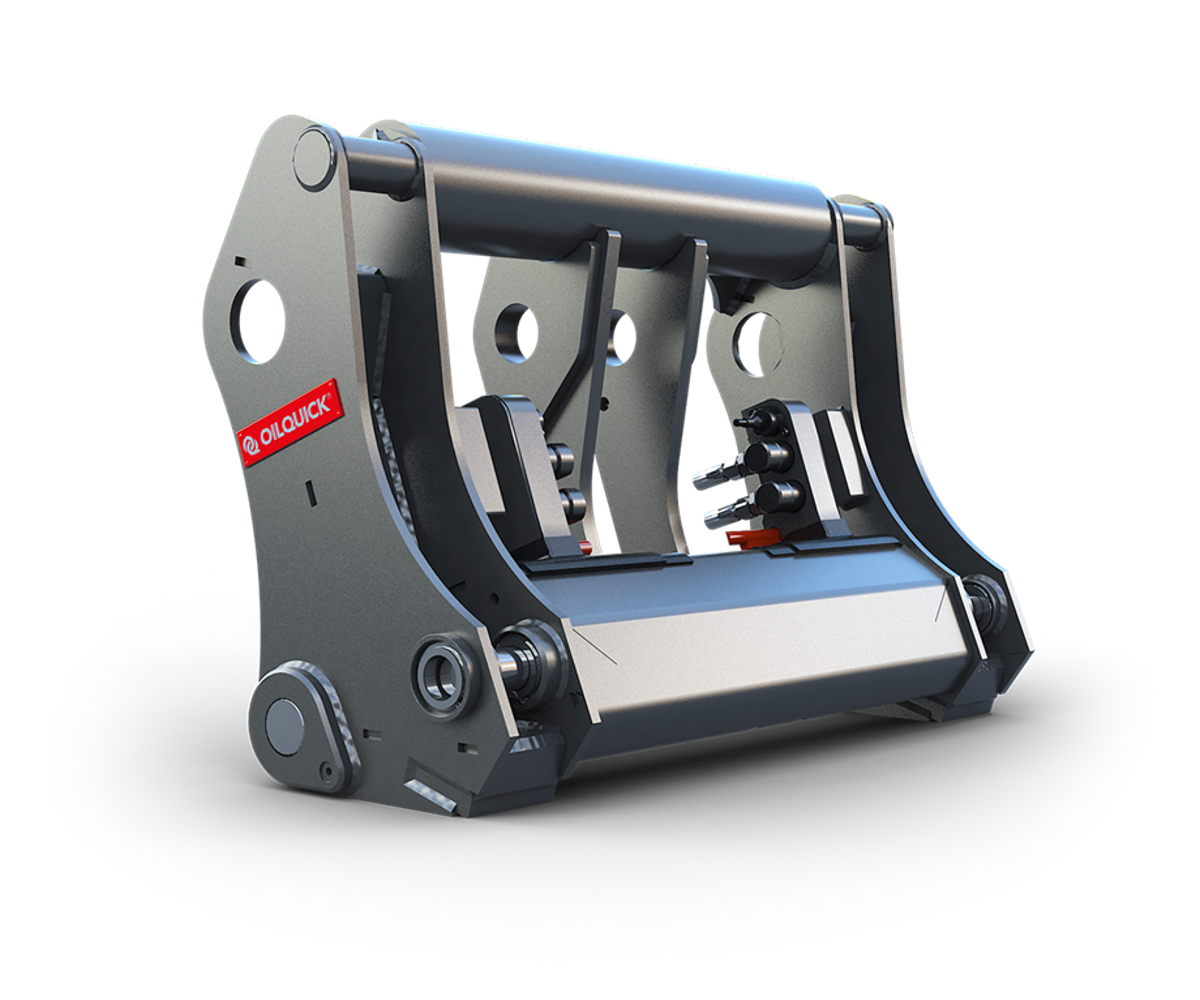

OQL 310
OilQuick automatic quick coupler system, type OQL310 is suitable for mid-sized wheel loaders in the weight class 6-20 t.
Why OQL?
Dirt guards
Robust dirt guards with a reliable opening mechanism protects the quick couplings when using mechanical attachments without OilQuick-function.
Hardened hook axels
Improves the couplers longivity and minimizes play.
Locking arms
One piece locking arms that provides a more stable and reliable construction.
Replacable steel bushings
In order to keep the tight tolerances after wear and tear between the locking plungers of the locking arms and the quick coupler, replacable steel bushings have been introduced.
Electrical coupling
Compact design.
Screw-on couplings
Hydraulic couplings with integrated guidings makes replacement and service faster.
OQL 310 - Wheel Loader Specs
Imperial
Metric
| Model | Weight | Width | Electrical Coupling 10-Pole Optional | Carrier Weight | Suitable for Volvo Model |
| OQL 310-1 | 270 kg | 1168 mm | Left hand side | 6 - 10 t | L50 |
| OQL 310-2 | 350 kg | 1194 mm | Left hand side | 10 - 14 t | L60 |
| OQL 310-3 | 430 kg | 1194 mm | Left hand side | 12 - 20 t | L70 - L120 |
| The quick coupler has one hydraulic cylinder | |
| Max. working pressure | 35 MPa |
| Load holding valve/check-valve | Yes |
| Piston/Piston rod, diameter | 60/40 mm |
| Stroke per cylinder side | 135 mm |
| Total closing force at 10 MPa | 28,3 kN |
| Max. continuous working pressure | 35 MPa |
| The non-spill steel couplings are of OilQuick type | |||
| Coupling sizes | 1/2" | 3/4" | |
| Oil flow at 0,03 MPa pressure loss | 70 (L/min) | 140 (L/min) | |
| Max. continuous working pressure | 35 MPa | 35 MPa | |
| No. of couplings | 2 | 4 | |
| Possible to use 1/2” electric coupling | Yes | ||
| Size and location of quick couplings | |
| Coupling 1 & 4 | 1/2" |
| Coupling 2,3,5 & 6 | 3/4" |
| Model | Weight | Width | Electrical Coupling 10-Pole Optional | Carrier Weight | Suitable for Volvo Model |
| OQL 310-1 | 595 lbs | 46" | Left hand side | 6 - 10 t | L50 |
| OQL 310-2 | 772 lbs | 47" | Left hand side | 10 - 14 t | L60 |
| OQL 310-3 | 948 lbs | 47" | Left hand side | 12 - 20 t | L70 - L120 |
| The quick coupler has one hydraulic cylinder | |
| Max. working pressure | 5,080 Psi |
| Load holding valve/check-valve | Yes |
| Piston/Piston rod, diameter | 2.4" / 1.6" |
| Stroke per cylinder side | 5.3" |
| Total closing force at 10 MPa | 4,100 Psi |
| Max. continuous working pressure | 5,080 Psi |
| The non-spill steel couplings are of OilQuick type | |||
| Coupling sizes | 1/2" | 3/4" | |
| Oil flow at 0,03 MPa pressure loss | 18 gal/min | 37 gal/min | |
| Max. continuous working pressure | 5,076 Psi | 5,076 Psi | |
| No. of couplings | 2 | 4 | |
| Possible to use 1/2” electric coupling | Yes | ||
| Size and location of quick couplings | |
| Coupling 1 & 4 | 1/2" |
| Coupling 2,3,5 & 6 | 3/4" |
OQL 310
Imperial
Metric
| Adapter data OQL 310 | |
| Attachment frame inner measurement (A) | 960 mm |
| Height (B) | 617 mm |
| Hooks diameter (C) | 61,5 mm |
| Locking plungers diameter (D) | 50 mm |
| Adapter data OQL 310 | |
| Attachment frame inner measurement (A) | 37.8" |
| Height (B) | 24.3" |
| Hooks diameter (C) | 2.4" |
| Locking plungers diameter (D) | 2" |
