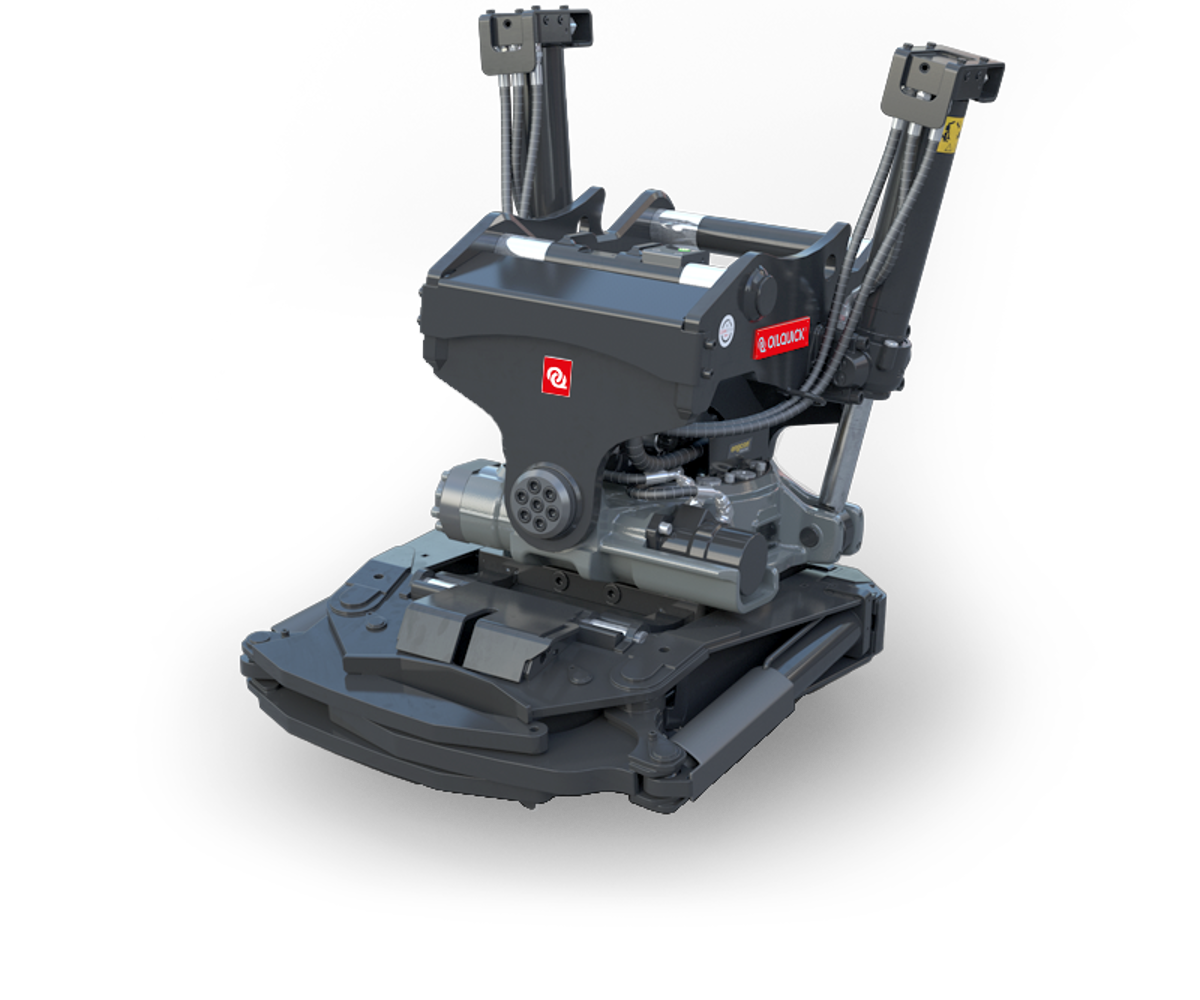

OQTR-E19
Tiltrotator for medium-sized excavators and backhoe loaders in weight class 14-19 t.
Why OQTR-E?
Using the OilQuick tiltrotator equipped with the sandwich solution, the driver can tilt, rotate or change the tiltrotator for a bucket or other attachment and also change hydraulic tools under the tiltrotator without having to leave the cab. This takes the tiltrotator to a new level. If you have an OilQuick system mounted on top of the tiltrotator, you can remove it quickly to attach a standard bucket, ripper or hydraulic hammer, thus making maximum use of your excavator's capacity and breakout force. This also makes sure that the right tool is used for the right job!
OQTR-E19
| Min/max machine weight | 14 000 - 19 000 kg |
| Weight | From 600 kg |
| Max. breaking torque | 186 kNm |
| Max. bucket width | 1700 mm |
| Max. hydraulic pressure | 22 MPa |
| Rec. hydraulic flow DC2 | 120 L/min |
| Rec. hydraulic flow tilt/rotation OQCS-4 | 65/70 L/min |
| Max. return line pressure | 2,5 MPa |
| Max. hydraulic flow extra/high flow | 100 L/min |
| Swivel channel extra function | 4 |
| Swivel channel locking function | 2 |
| Rotation | Unlimited |
| Tilt angle | 2x45° |
| Tilting speed at hydraulic flow | 3/65 s/L/min |
| Rotation speed for one rotation at hydraulic flow | 6,5/70 s/L/min |
| Standard dimension extra outlet | 3/4" |
| No. of lubrication points | 5, standard |
| No. of lubrication points through OQ-function | 4, option |
| Rotation sensor and ePS | Yes, standard |
| Tilt cylinder, double acting with load holding valve | Yes, standard |
| Control system | |
| DC2 | ✓ |
| DC2 wheel control | Option |
| DC2 track control | Option |
| OQCS-4 | ✓ |
OQTR-E19
| Quick coupler | OQ60-4 | OQ60-5 | OQ65 | OQRAIL |
| Weight (kg) | From 600 kg | From 600 kg | From 700 kg | From 720 kg |
| Total length mm (A) | 792 | 792 | 910 | 910 |
| Height mm (B) | 626 | 626 | 687 | 687 |
| Width mm (C) | 765 | 765 | 900 | 900 |
| Total height mm (D) | 1159 | 1159 | 1154 | 1154 |
| Coupler width mm (E) | 340 | 340 | 440 | 440 |
| C-C Axle distance mm (F) | 480 | 480 | 530 | 530 |
| Inner dimension mm (G) | 341 | 441 | 441 | 441 |
