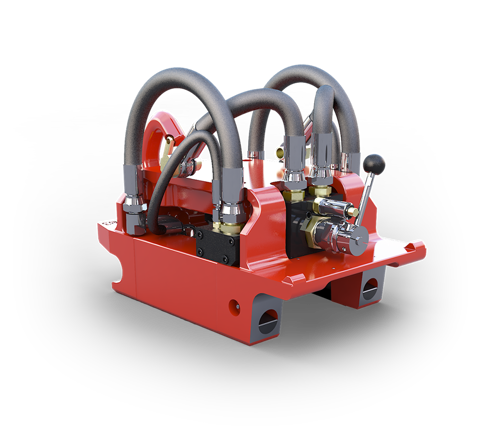

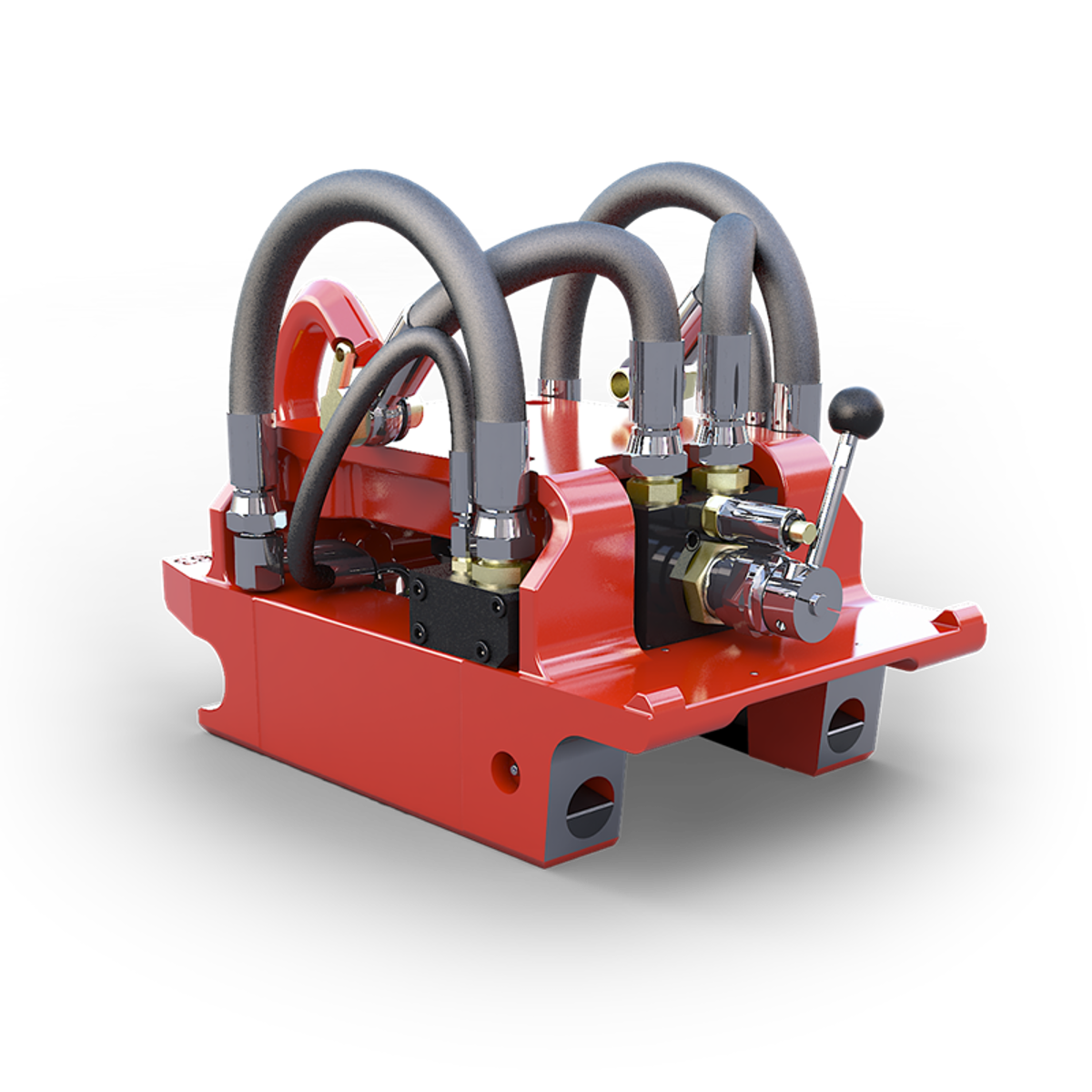

OQC40M

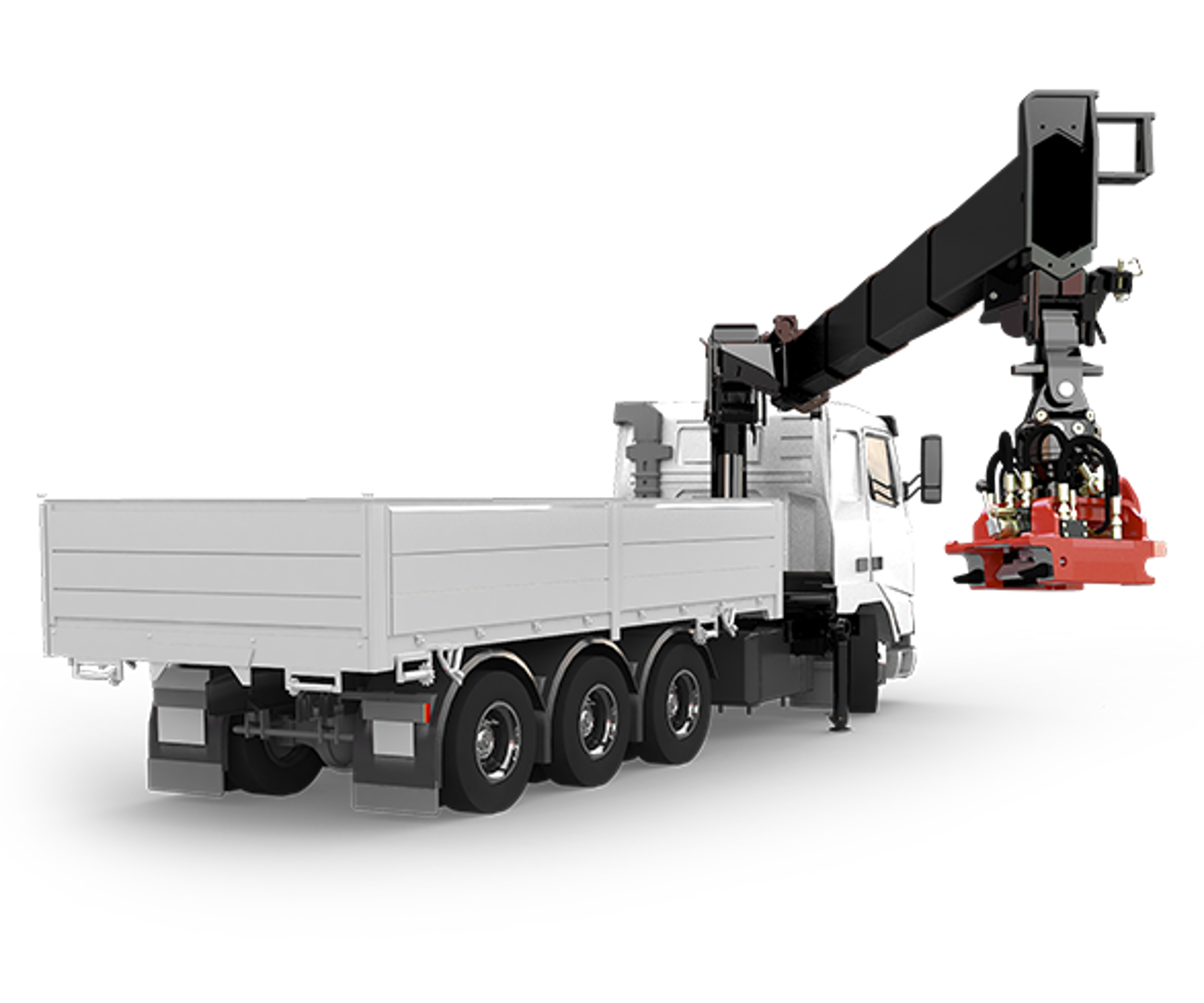

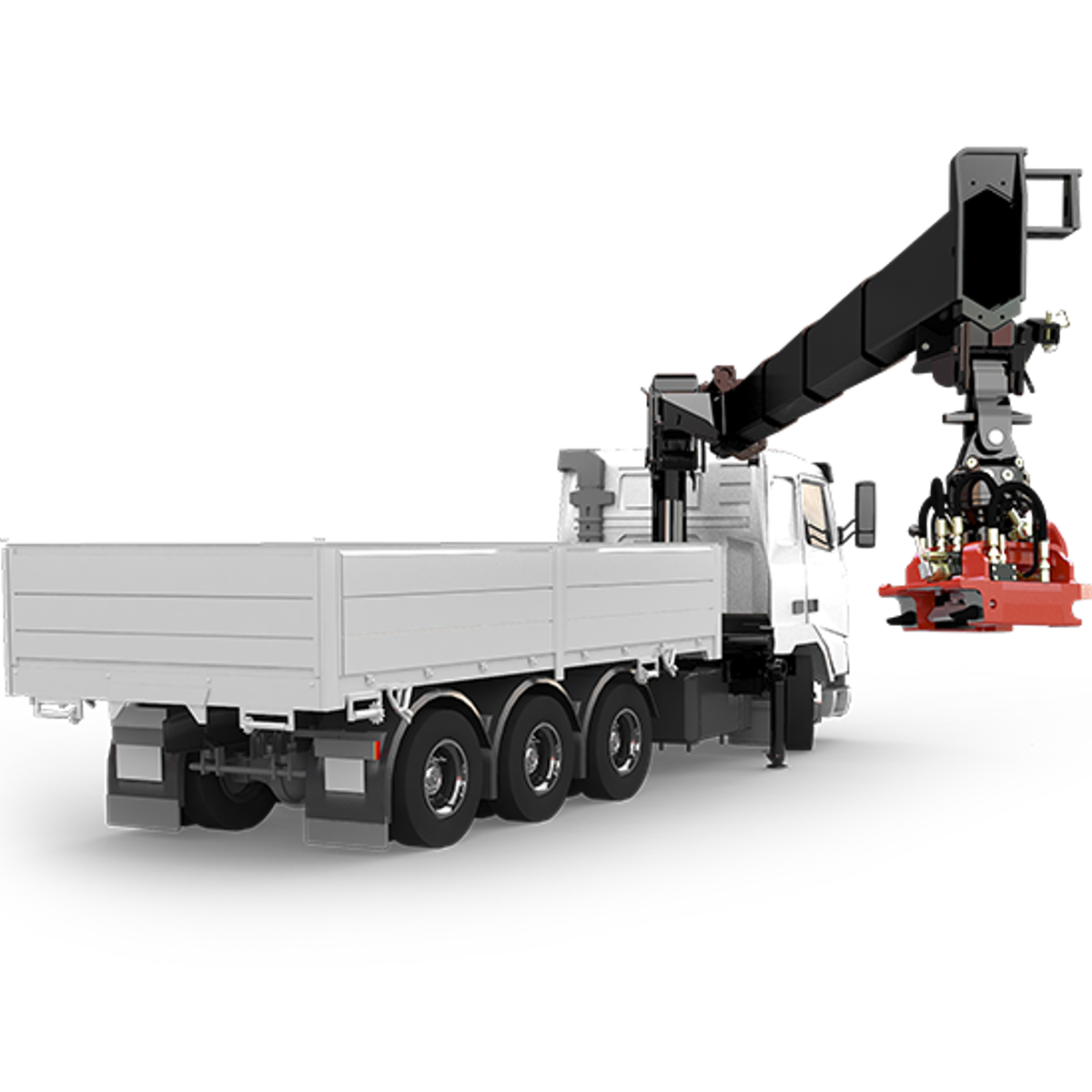

Automatic quick coupler system for lorry cranes

A major leap forward

OilQuick OQC 40M is a major leap forward in the process of making tool changing on cranes much easier. The driver can within just a few seconds team up the crane with the OilQuick OQC 40M and switch between many types of mechanical and hydraulic tools. Tools such as clamshell buckets, pallet forks, sweeper rollers, augers, timber grapples, hook, brick and block clamps etc. are now just a blink of an eye away from being mounted and ready-to-use.

Automatic hose quick coupler function

The OilQuick OQC 40M is provided with an automatic hose quick coupler function, the hydraulic hoses are connected automatically as the operator hydraulically locks the quick coupler to the tool. No more handling of greasy hoses or quick release couplings. By equipping your crane with the OilQuick OQC 40M your business can take on new and more profitable complete assignments. Tasks that used to demand the need of many contractors can now be taken care of by you alone, thus giving your business an increased profit.

Technical data quick coupler



Max. lifting capacity 4500 kg
Max. working pressure 250 bar
Width 240 mm
Height - without rotator 170 mm
Length 400 mm
Weight- without rotator 30 kg



Technical data tool adapter



Model Mechanical Hydraulic With hook
Height (mm) 250 250 355
Width (mm) 300 300 300
Weight (kg) 30 31 40
Length (mm) 480 480 485
Total height (not connected) 575 575 680
Total height (connected) 590 590 695
