OQC 70-55

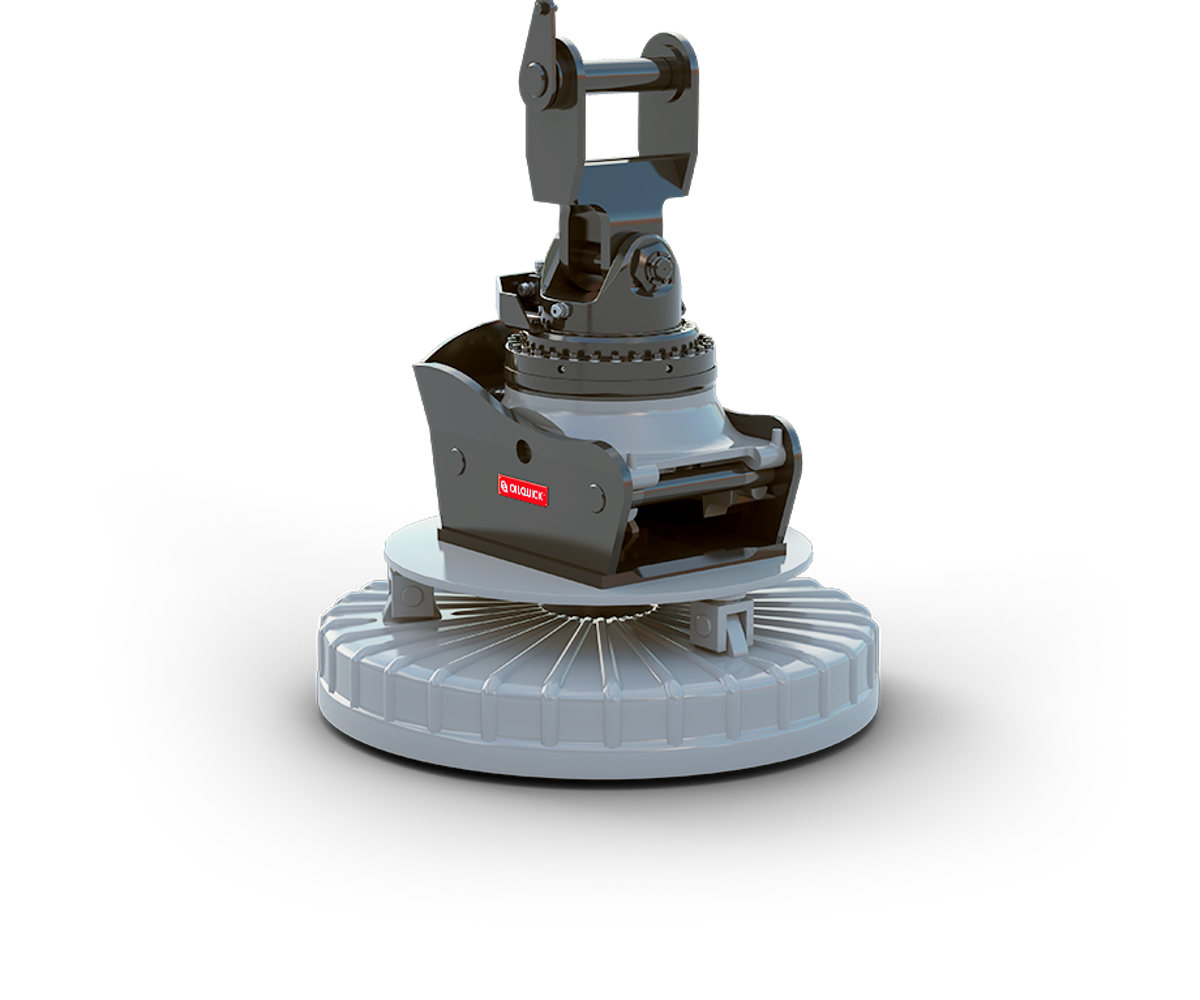

The OQC is an OilQuick suspended quick coupler, which is primarily designed for use on loading cranes and other handling equipment with lifting capacity up to 30 tons.
Why OQC?
- Hydraulic cylinder with double hose rupture valves. Full system pressure continuously applied to the locking bolts ensures that the attachments are locked securely in place without any play.
- Robust quick coupler made of high-grade steel.
- Wear-free OilQuick tool adapter.
- It only takes one cylinder movement to connect the hydraulic circuits automatically and lock the tools mechanically.
OQC 70-55
| Rotator | Weight (kg) | Max. lift capacity | ||
| Coupler | Rotor | Adapter | ||
| XR600 | 370 kg | 320 kg | 344 kg | 30 t |
| Max. no. of couplings | Electrical couplings | Max. operating pressure | ||
| 1" | 3/4" | High power 90 A | Control power 24 V | |
| 2 | 1 | Option | Option | 350 bar |
OQC 70-55
| A | 551 mm |
| B | 754 mm |
| C | 600 mm |
| D | 932 mm |
| E | 750 mm |
| F | 697 mm |
| G | 631 mm |
